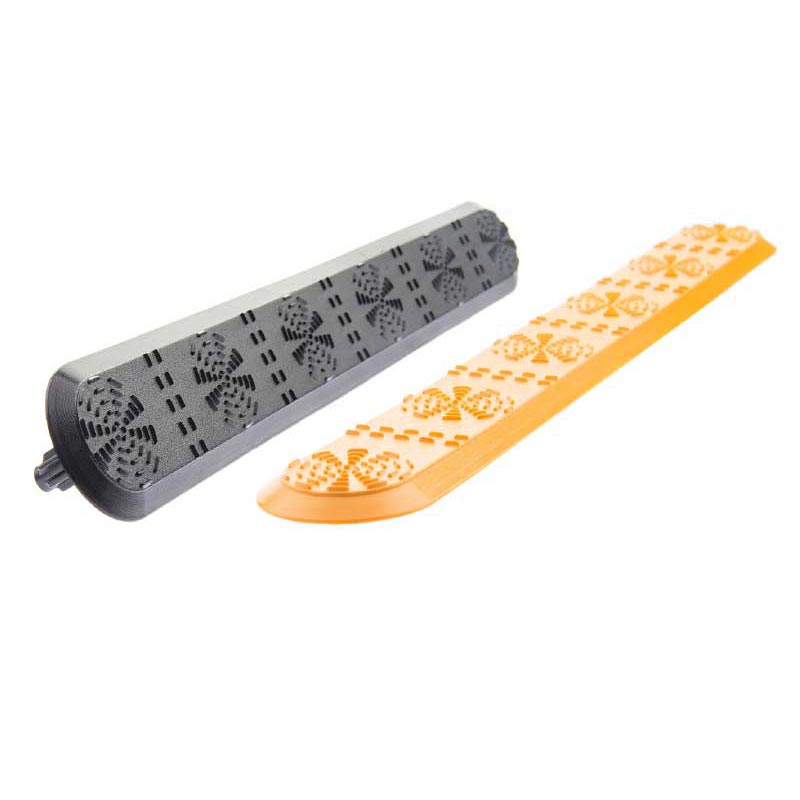

Directional Discrete TGSI Polyurethane Single Stem


Directional discrete TGSI polyurethane has a specially designed top surface with smooth sides that reach the P5 slip rating.
Suitable substrates for both the Warning and Directional TGSI include: Concrete (broomed & exposed), Bitumen, Timber, Vinyl, Carpet, Tiles & Pavers
Installation method: Masonary drill and pressure fit. Core drill and pressure fit

Make installation easy, add one of our TSA Install Hammers or other accessories
Installation Drilling Template TSA 300mm x 300mm

Product Description

Directional Discrete TGSI Polyurethane Single Stem

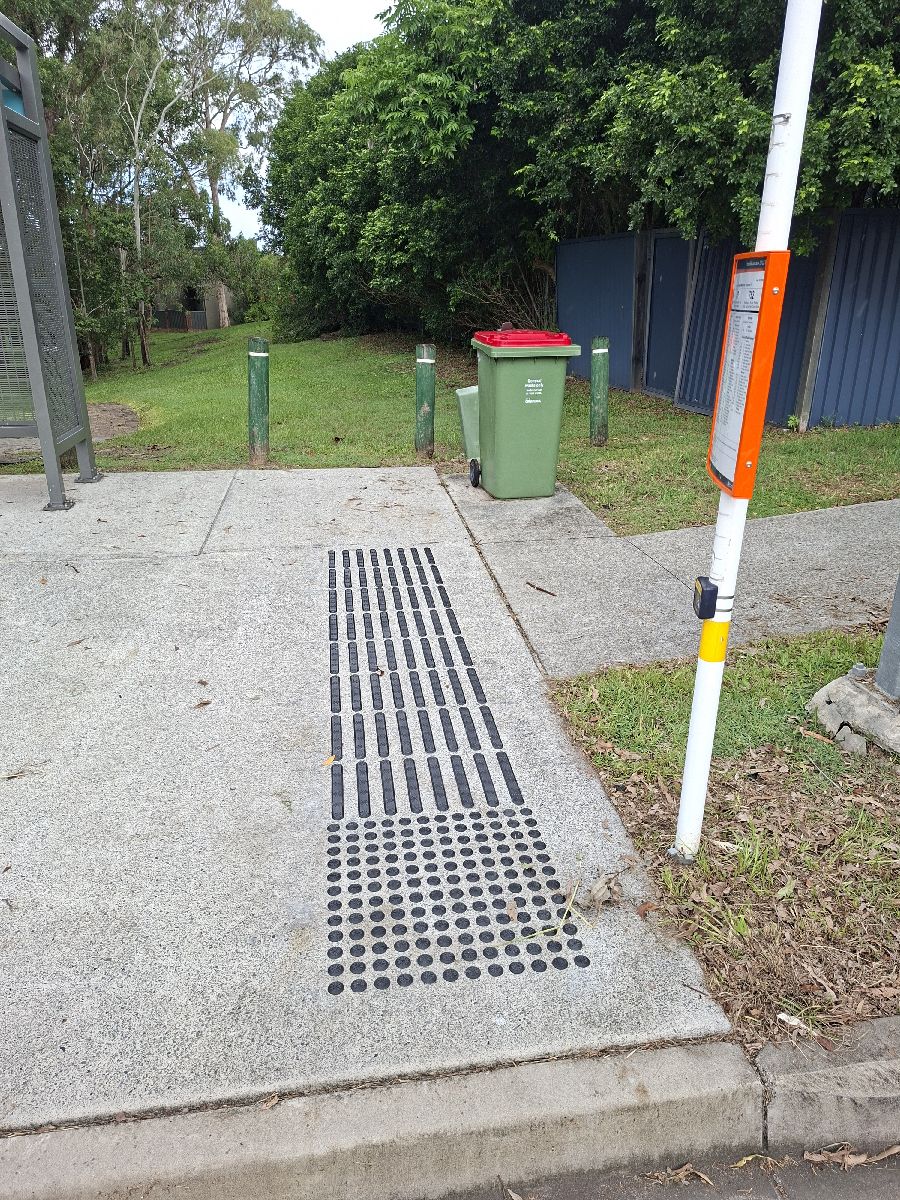

TSA’s range of Polyurethane TGSI have been used in a huge variety of applications such as train stations, office buildings, airports, bus stops and shopping centres.
Manufactured from UV stabilised Thermoplastic Polyurethane Elastomer, which was specifically chosen to withstand the harsh Australian weather conditions and built environment.


Thermoplastic Polyurethane Elastome

Slip Rating

P5 Slip Rating – NATA Approved Laboratory

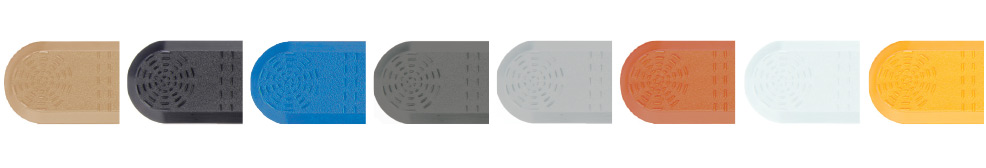

Product Variations:

Colour Code LRV Rating
Black DDPL-20S-TSA-BLK 2.54
Yellow DDPL-20S-TSA-YEL 42.06
White DDPL-20S-TSA-WHI 70.53
Charcoal DDPL-20S-TSA-CHA 11.32
Grey DDPL-20S-TSA-GRY 39.77

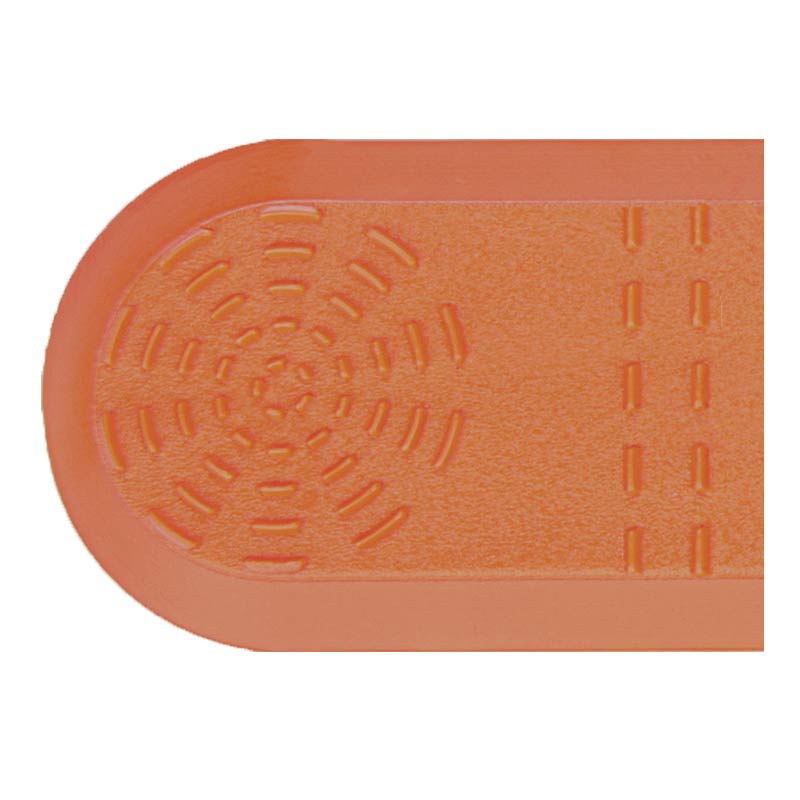

Terracotta DDPL-20S-TSA-TER 8.61
Beige DDPL-20S-TSA-BEI 21.66
Blue DDPL-20S-TSA-BLU 7.15

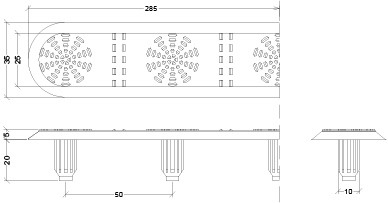

DDPL-20S-TSA - 2020

Suitable Substrates:

Tiles Carpet
Bitumen Timber
Rubber Vinyl
Concrete Pavers
Exp Aggregate

Data Sheet – Directional Discrete – TGSI Polyurethane Single Stem
